Radial Tire 4 Link Brackets

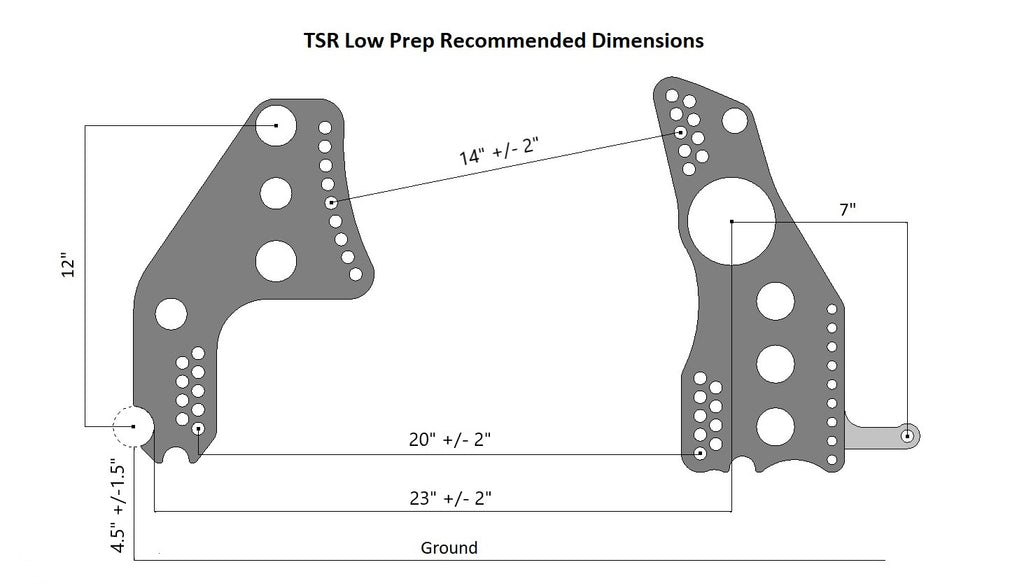

These 4 link brackets are designed specifically for drag radial cars! With the help of world famous drag radial builder/tuner Josh Lindsey, we have taken what we have learned from some of the fastest stock suspension and 4 link radial cars and combined them into one universal bracket kit. The shorter upper bar allows you to easily make the car separate on the launch like a stock suspension radial car, while still keeping the versatility and strength of a traditional 4 link. The best of both worlds. They are laser cut from 1/4", available in chromoly or mild steel and include matching 1/8" doublers. They feature 1/2" staggered holes for all the adjustment you need.
Chassis brackets are 14" tall and notched on bottom for 1-5/8 tube, have through holes for an 1-5/8 tube on top and have pro jack tabs incorporated into the bottom of the brackets.
Housing brackets for 3.5" axle tubes in chromoly and 3" or 3.5" axle tubes in mild steel. They have 6" of shock adjustment in 3/4" increments and pro jack tabs as well. Pair them with a set of billet shock mounts for the ultimate radial car rear end setup.
Note: Doublers come loose, please specify axle tube size at checkout.
