Small Tire HD 4 Link Brackets

We have designed our new 4 link brackets specifically for the small tire guys. These HD 4 link brackets are designed around 275/315 or 28/29" tall tire, but still work well with a larger tire.  They are laser cut from 1/4", available in chromoly or mild steel, and include matching 1/8" doublers to handle anything you can throw at them.  1/2" staggered holes for all the adjustment you need whether on a radial or slick.

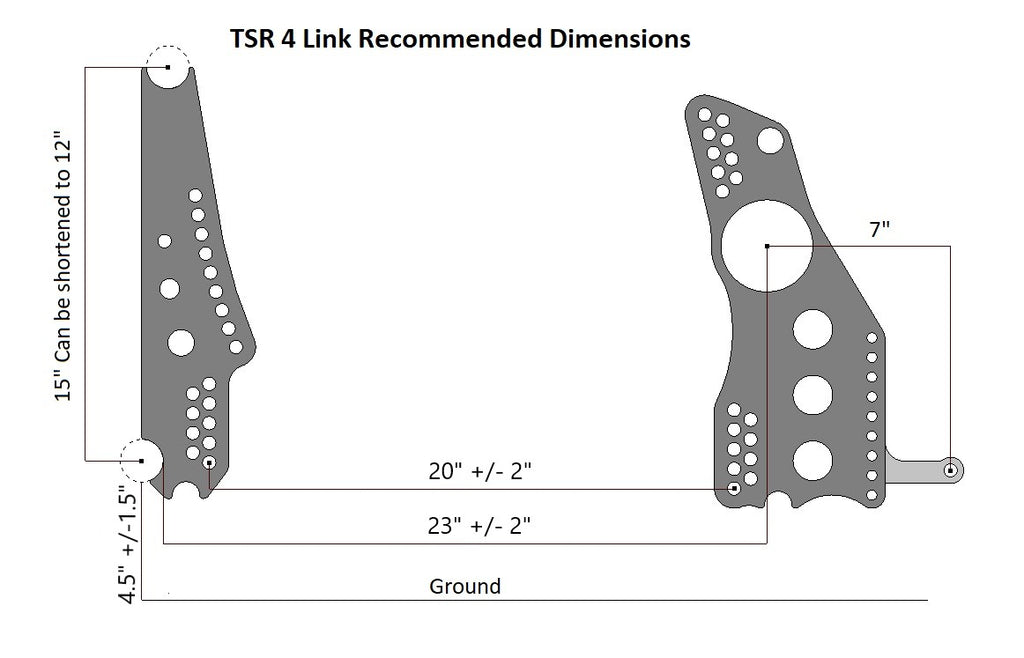

Chassis brackets are 16" tall and notched on bottom for 1-5/8 tube, blank on top for multiple mounting configurations and have pro jack tabs incorporated into the bottom of the brackets.

Housing brackets made for 3.5" axle tubes in chromoly or 3" axle tubes for mild steel. 6" of shock adjustment in 3/4" increments and have pro jack tabs as well. Pair them with a set of billet shock mounts for the ultimate rear end setup.

Note: Doublers come loose, not welded to brackets
