TSR 4 Link Package - Chromoly
Regular price
$2,352.00

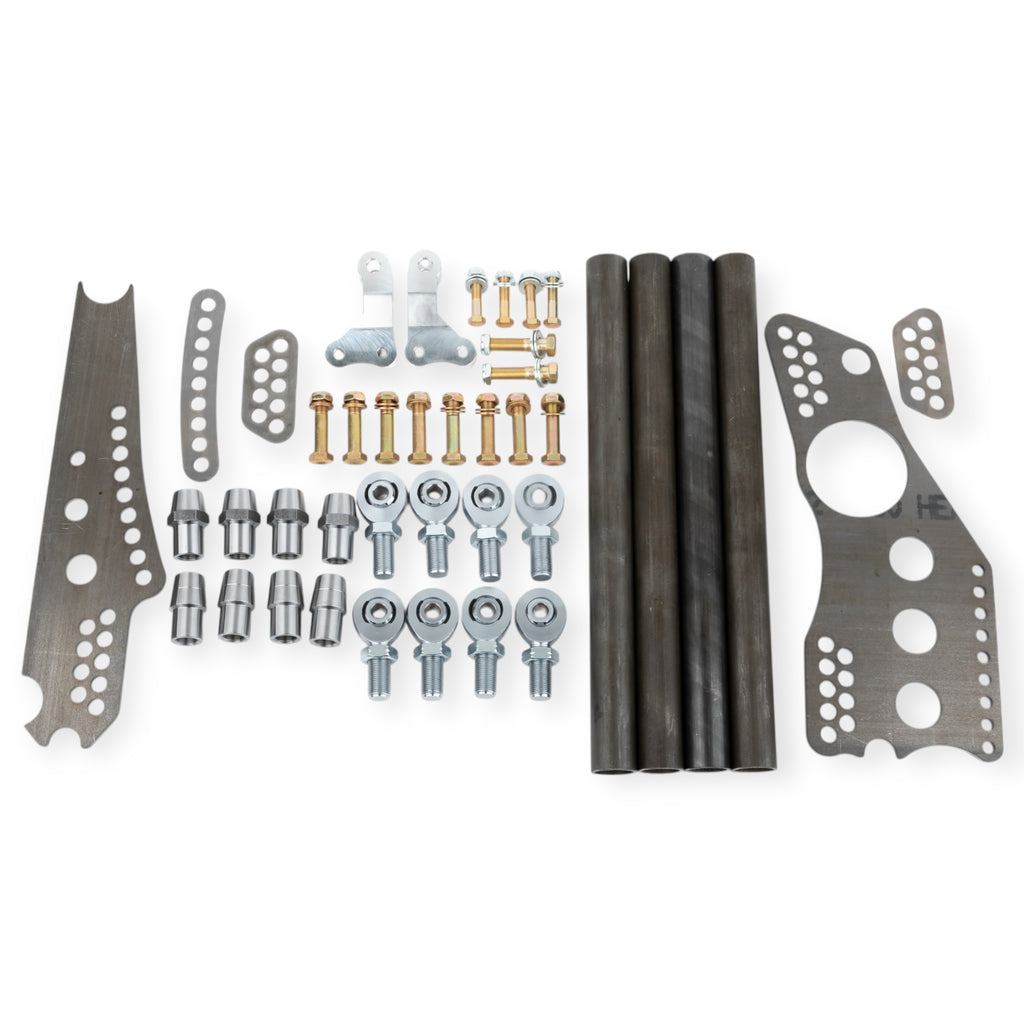

Our TSR 4 Link chassis package includes:
- Chromoly 4 Link chassis brackets
- Chromoly housing brackets-3.5" tube diameter
- 1.5" Control arms
- Billet shock mounts
- NAS hardware!
The HD 4 link brackets are designed around 275/315 or 28/29" tall tire, but still work well with a larger tire. They are laser cut from 1/4" chromoly and come with 1/8 loose doublers. 1/2" staggered holes for all the adjustment you need whether on a radial or slick.
Chassis brackets are notched on top and bottom for 1-5/8 tube, setup for 15" tube spread (but can be cut down to 12") and have pro jack tabs incorporated into the bottom of the brackets.
Housing brackets made for 3.5" axle tubes in chromoly. 6" of shock adjustment in 3/4" increments and have pro jack tabs as well. Pair them with a set of billet shock mounts for the ultimate rear end setup.
