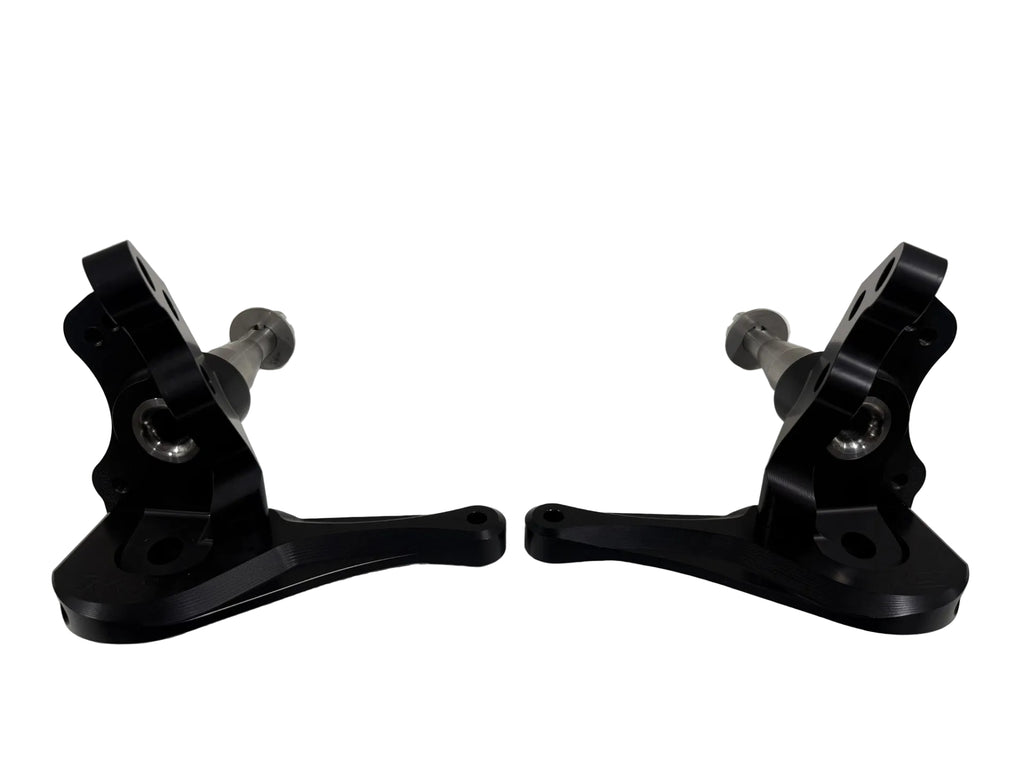

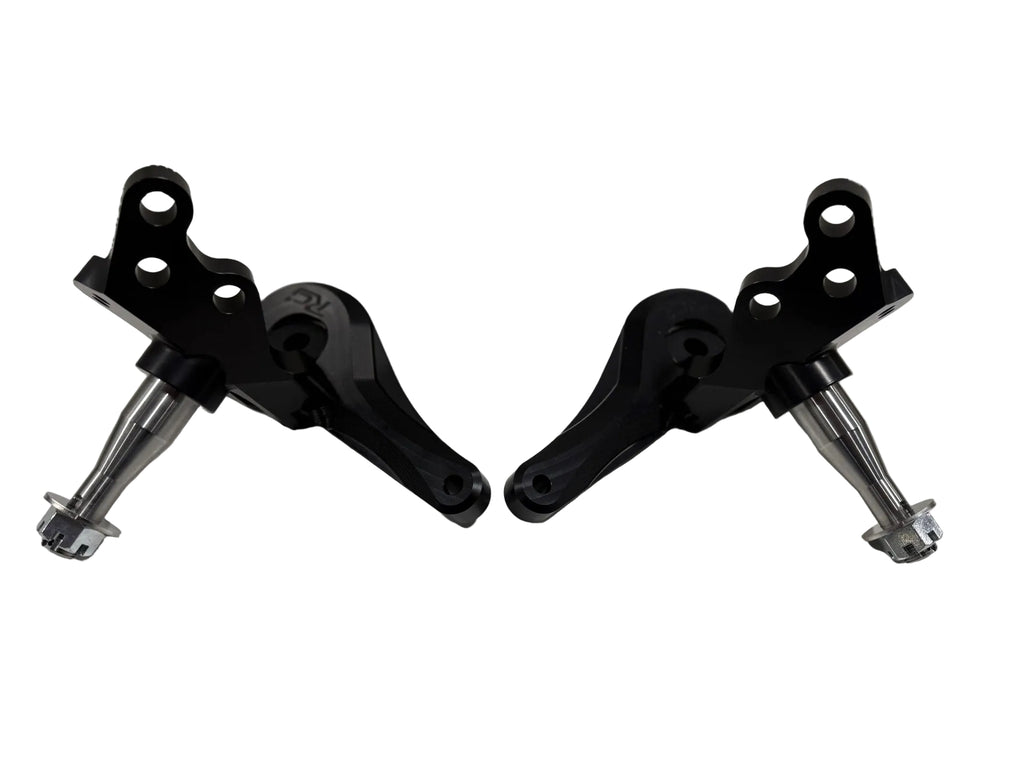

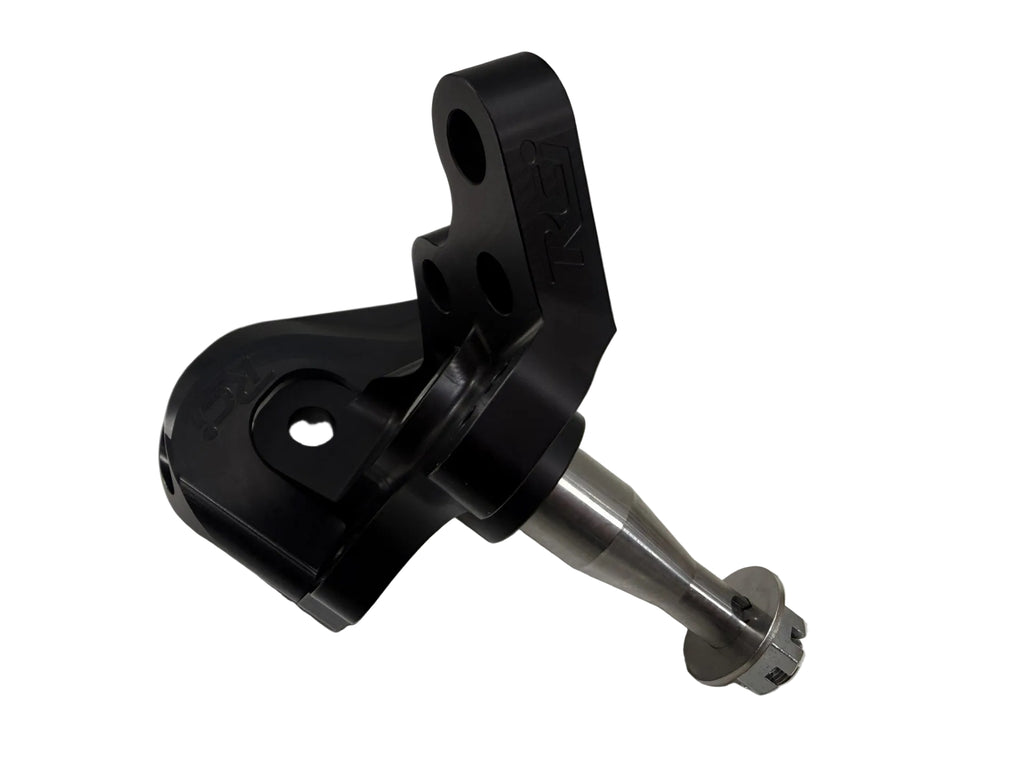

Racecraft Billet Ultra Lite 79-04 Mustang Spindle (Spindle Mount)

The New BILLET Ultra Lite 2” Drop Spindles. Designed for maximum strength while providing the lightest possible spindle for the factory style suspension Mustangs. This Spindle is designed with a 7/8" Longer Steering Arm to accommodate forward mounted steering racks such as our Strange Rack K-Members. Utilizes our 7/16" Lightweight Bumpsteer Kit.

**This Spindle is designed to use a Bolt on or Spindle Mount Wheel. For Spindle Mount applications it uses the Strange Bearing Wheels.**

**The Strut Mount on this Spindle is Stood Up 4 Degrees Straighter so you will need Caster/ Camber Plates that can adjusted for Camber.**

The Billet Ultra Lites 2" Drop Spindles require a Special Brake Kit. Below are the brake options.

P/N : 300216

SOLD IN PAIRS

• Brake Kit Weight Per Side: 15.2 Lbs
• Stock Spindle Weight: 11.1 Lbs
• Steel RCI Ultra Lite Spindle weight: 5.4 Lbs (Each)
• New Billet Ultra Lite Spindle weight: 4.5 Lbs (Each)
• Weight Savings over stock: 6.6 Lbs.
• The Spindle Nut Kit is Included.
• Sold in Pairs

Brake Options:

Stange Pro Series 2 Piston Kit 5x4.5 (B4453WC)

Strange Evolution 2 Piston Kit 5x4.5 (B4453WCE)

Stange Pro Series 4 Piston Kit 5x4.5 (B4153WC)

Strange Evolution 4 Piston Kit 5x4.5 (B4153WCE)

Strange EVO 2 Ball Bearing DDM Kit 5x4.5 (B4753WCE)

Light Weight TBM 2 Piston Brake Kit 5x4.5 (001-0216)

TBM 4 Piston Kit RCI Ultra Lights 5x4.5 (001-0302-1)

Spindle Mount Brake Options:

Strange Single Piston Brake Kit (B4597WC)

Strange Evo Spindle Mnt Brake Kit (B4597WCE)

TBM Spindle Mount Brake Kit (001-0204)
